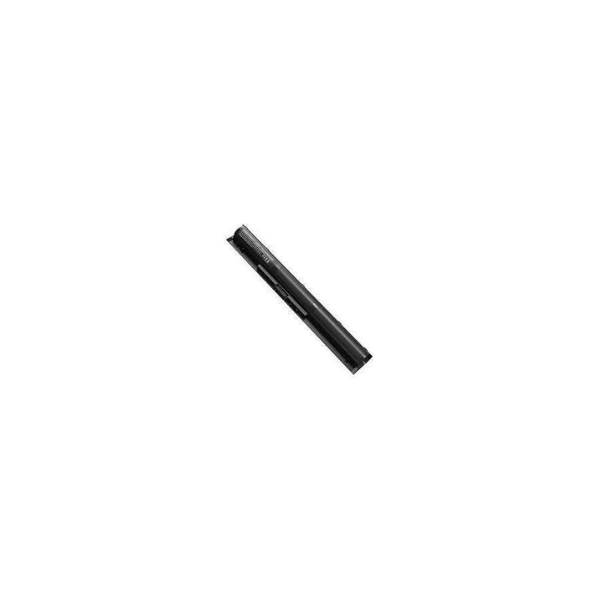

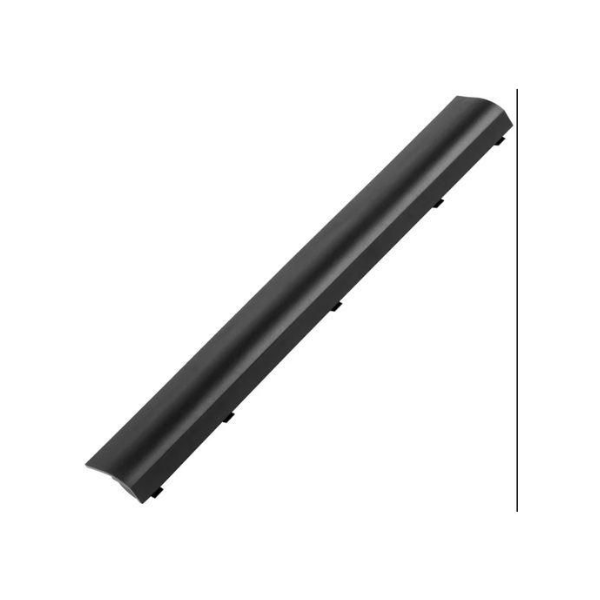

HP KI04 Pavilion 14-ab000 Series HP Pavilion 15-ab000 Series HP Pavilion 17-g000 Series

Battery Specifications

• Battery Type: Lithium-Ion (Li-ion)
• Voltage: 14.8V (also compatible with 14.6V variants)
• Capacity:
  • 4-cell version: 2600mAh (41Wh)
  • 6-cell version: 4400mAh (65Wh)
• Battery Cells: Available in 4-cell or 6-cell configurations
• Energy Rating: 41Wh (4-cell) / 65Wh (6-cell)
• Color: Black
• Weight: Approx. 300g – 400g (varies by cell configuration)

Compatibility

Compatible HP Pavilion Models:

• HP Pavilion 14-ab000 Series
• HP Pavilion 15-ab000 Series
• HP Pavilion 17-g000 Series

Compatible Part Numbers:

• KI04
• 800049-001
• 800050-001
• HSTNN-DB6T
• HSTNN-LB6S

Performance & Usage

• Charging Time: 2-3 hours (depending on charger and laptop usage)
• Standby Time: Can hold charge for several weeks when stored properly at 50% capacity
• Recharge Cycles: Supports up to 500-800 full charge cycles before significant performance decline

Safety Features

• Overcharge Protection: Prevents excessive charging to prolong battery life
• Overcurrent Protection: Shields against power surges
• Short-Circuit Protection: Ensures battery safety during electrical faults
• Temperature Control: Regulates internal temperature to prevent overheating

Physical Dimensions

• Length: ~27.5 cm (10.83 inches)
• Width: ~4.8 cm (1.89 inches)
• Height: ~2.0 cm (0.79 inches)

Additional Features

• Eco-Friendly Design: Energy-efficient and environmentally safe
• Lightweight Build: Ideal for portability without compromising performance
• Durability: Ensures stable and consistent performance for extended laptop use
