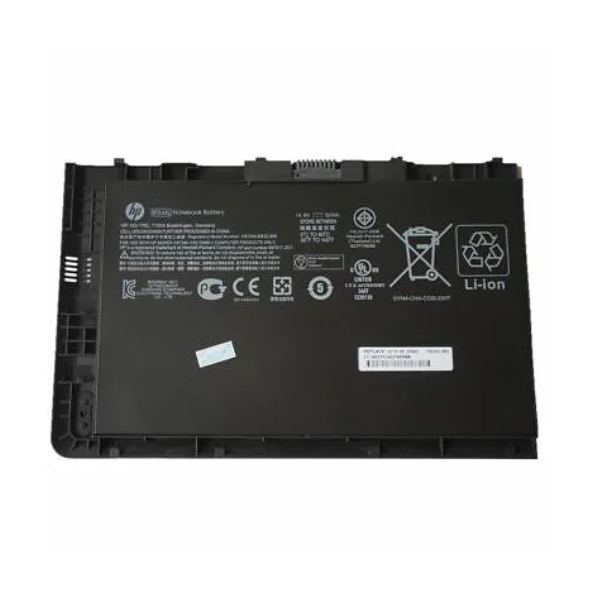

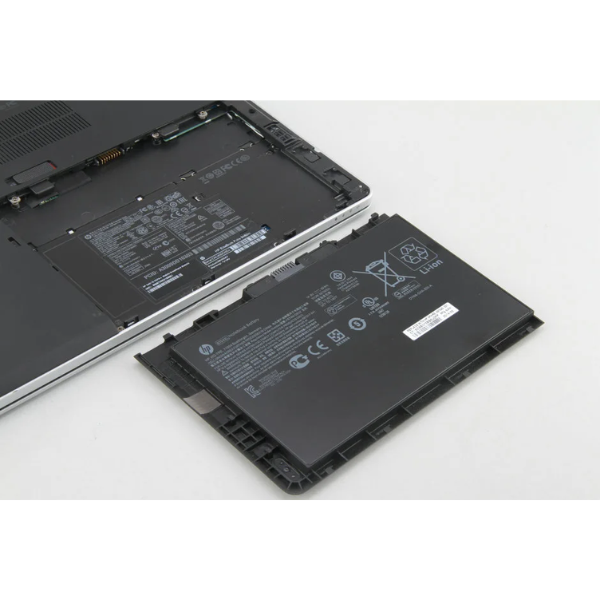

HP EliteBook Folio 9470 9470M 9480M BT04XL Notebook Series Original HP Battery

Description

HP BT04XL Battery Specifications

• Battery Type:

  • Chemistry: Lithium-ion (Li-ion)
  • Technology: Rechargeable, Li-ion cells for long-lasting performance

• Capacity:

  • Watt-Hour (Wh): 47Wh (Watt-hour)
  • Amp-Hour (Ah): 4.2Ah

• Voltage:

  • Nominal Voltage: 11.1V
  • Maximum Voltage: 12.6V (fully charged)

• Cell Configuration:

  • Number of Cells: 6-cell (contains 6 individual cells connected in series)

• Power Output:

  • Designed to provide an output of 11.1V nominal voltage with a total power capacity of 47Wh.

• Battery Dimensions:

  • Length: Approx. 297mm (11.69 inches)
  • Width: Approx. 81mm (3.19 inches)
  • Height: Approx. 22mm (0.87 inches)
  • Thickness: Slim design to fit within the laptop’s battery compartment

• Weight:

  • Weight: Approximately 0.35kg (0.77 lbs)

• Charging Time:

  • Charging Time: Typically 2-4 hours depending on the laptop’s charging adapter and charging conditions.

• Battery Life:

  • Run Time: Up to 5-8 hours under typical usage conditions, such as web browsing or document editing
  • The actual runtime may vary based on the device’s power settings and workload.

• Environmental Conditions:

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Humidity: Designed for operation in relative humidity of 5% to 95%, non-condensing

• Compatibility:

  • HP EliteBook Folio 9470
  • HP EliteBook 9470M
  • HP EliteBook 9480M
  • Other compatible HP notebooks with similar battery configurations and connectors

• Connector Type:

  • Interface: 6-pin connector
  • Shape: Standard HP connector, designed for compatibility with HP EliteBook Folio series

• Safety Certifications:

  • Certifications: CE, UL, RoHS, ISO
  • Manufactured to meet or exceed strict safety standards for optimal performance and reliability.

• Part Numbers / Model Numbers:

  • HP Part Number: BT04XL
  • Alternate Part Numbers: 719173-001, 719173-002, 719173-003, 716052-001
