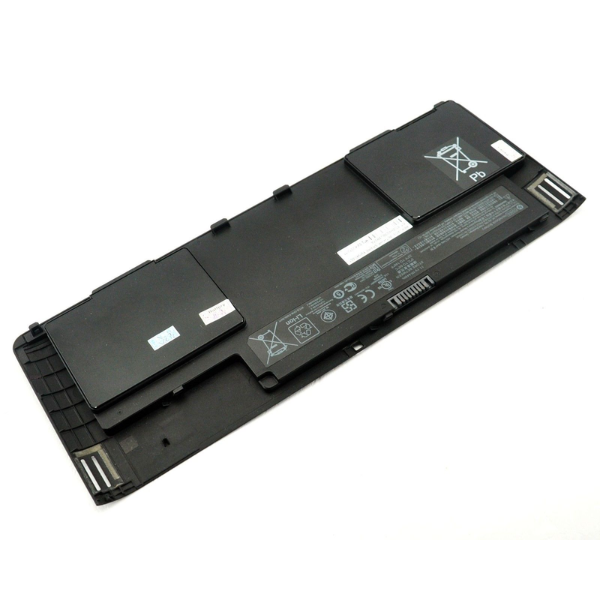

HP 0D06XL 810 G1 Battery

Description

Detailed Specifications:

• Battery Type:

  • Chemistry: Lithium-ion (Li-ion)
  • Technology: Rechargeable, Li-ion cells for high-energy efficiency

• Capacity:

  • Watt-Hour (Wh): 47Wh (Watt-hour)
  • Amp-Hour (Ah): Typically 4.2Ah

• Voltage:

  • Nominal Voltage: 11.1V
  • Maximum Voltage: 12.6V (fully charged)

• Cell Configuration:

  • Number of Cells: 6-cell (contains 6 individual Li-ion cells)
  • Cell Type: Series connection of cells

• Power Output:

  • Designed to output 11.1V nominal voltage
  • Output Power: 47Wh (Watt-hour)

• Battery Dimensions:

  • Length: Approx. 294mm (11.57 inches)
  • Width: Approx. 78mm (3.07 inches)
  • Height: Approx. 22mm (0.87 inches)
  • Thickness: Slim design to fit the laptop’s battery compartment

• Weight:

  • Weight: Around 0.35kg (0.77 lbs)

• Charging Time:

  • Typically, 2-4 hours to fully charge with the standard HP charger
  • Charging time may vary depending on the specific charging adapter and conditions

• Expected Battery Life:

  • Run Time: 4-8 hours depending on laptop usage, power settings, and workload
  • Typically, under moderate usage (web browsing, document editing), the battery can provide up to 6 hours of usage.

• Environmental Conditions:

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Humidity: Designed to operate in 5% to 95% relative humidity, non-condensing

• Compatibility:

  • HP EliteBook 810 G1
  • HP ProBook 450 G1
  • HP ProBook 430 G1
  • Other compatible HP laptops with similar battery slot specifications

• Connector Type:

  • Interface: Typically a connector with 6 pins or 7 pins, depending on the design of your specific laptop model
  • Connector Shape: Standard HP laptop connector

• Part Numbers (also known as replacement part numbers):

  • HP part number: 0D06XL
  • Alternate Part Numbers:
    • 769312-421
    • 769312-421
    • 769312-001
    • 769312-002
    • 0B48-026-403

• Safety Certifications:

  • CE, UL, RoHS, ISO certifications for quality and environmental safety
  • Manufactured to pass strict safety and performance standards

Additional Information:

• The HP 0D06XL battery is a genuine replacement and is recommended for maintaining the integrity and performance of your HP laptop.
• The battery is designed with built-in overcurrent protection and overvoltage protection to ensure safe operation.
